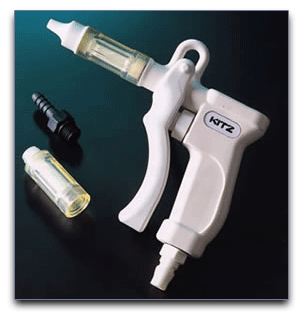

KITZ Unipore Air Blow Gun
 |
| Application |
- Compressed Air and Nz Blow.
- Rising Equipment and Print Board.
- Precision Machinery, Micro Electric Parts.
|
| Features |
- 0.01 µm Hollow Fiber Micro Filter.
- Compact and Light Weight.
- High Flow Rate.
- Oil Free, Particle Free for Clean Room.
|
| Specifications |
| Application |
Compressed air, N2 |
| Maximum Operation Pressure |
0.4MPa |
| Operation Temperature |
5oC ~ 50oC |
| Filtration Area |
80 cm2 |
| Particle Retention |
0.01 µm |
| Weight |
Body: 120g
Filter: 11.5g
Coil host: 260g
Socket: 24g ~ 26g |
|
|

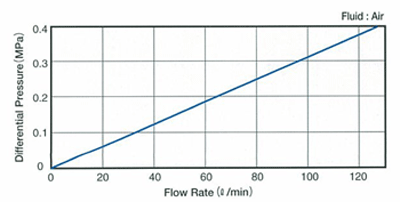

| Flow Characteristics |
 |
|
|

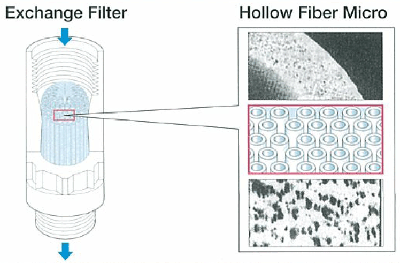

| Filter Structure |
 |
|
|
| Product Coding |
| Air Gun Unit |
 |
| CAGN-14 |
: Air gun unit for clean room (2 filters / pk ) |
| AGN-14 |
: Air gun unit for general use (2 filters / pk ) |
| CAGNC-80N1-14 |
: Clean room filter (2 / pk ) for Exchanging |
| AGNC-80N1-14 |
: Standard filter (2 / pk ) for Exchanging |
|
| Optional Parts |
| HOSE-1 |
Coil host for clean room |
| TS-2NZP |
Socket PT 1/4 (Oil free) |
| TS-3NP |
Socket PT 3/8 (Oil free) |
| TS-2NZP |
Socket PT 1/4 (Oil free) |
| TS-4NP |
Socket PT 1/2 (Oil free) |
|
| Exchange Filter |
 |
|
|
|
|
|
